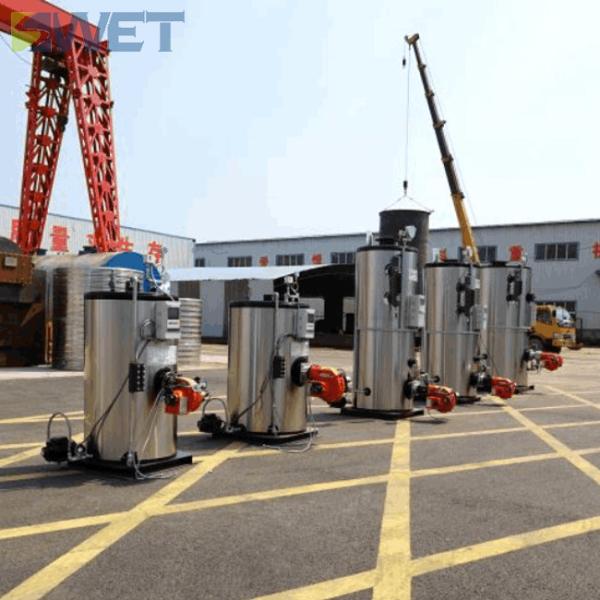

Vertical Diesel Fired Steam Generator Price 0.5t/h
Vertical water pipe or (pipeless) structure, less water capacity, fast steam production (the rated air pressure is reached within 8 minutes of starting up).
Small size, light weight, small footprint, quick installation and easy use.
One-button automatic operation, automatic water replenishment, automatic combustion, shutdown when the pressure is reached, automatic operation when the pressure is lower than the lower limit, water shortage alarm and protection, over-temperature alarm, over-pressure automatic pressure relief, safe and reliable, no need for special care.
Special boiler steel is used, which has good strength, good corrosion resistance and long service life.
Patented steam-water separation device, high steam purity, stable air pressure, clean quality and hygiene standards.
Equipped with high-quality safety accessories (water shortage, overtemperature, overpressure, overheating, ultrahigh pressure, flameout, leakage, safety valve and other protection measures, the boiler is absolutely safe and reliable.
Technical parameters
|
Item
|
LHS0.5-Y
|
|
Rated evaporation
|
Kg/h
|
50.
|
|
Rated pressure
|
Mpa
|
0.09
|
|
Rated steam temperature
|
℃
|
118
|
|
Inlet water temperature
|
℃
|
20
|
|
Design thermal efficiency
|
%
|
≥93
|
|
Fuel consumtiion
|
Kg/h
|
33.8
|
|
Applicable fuel
|
-
|
diesel
|
|
Approx dimensions
|
L
|
mm
|
1900
|
|
W
|
mm
|
1500
|
|
H
|
mm
|
2600
|
|
Approx shipping weight
|
Kg
|
1600
|
Application area
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
Any Question, Please contact us freely !
